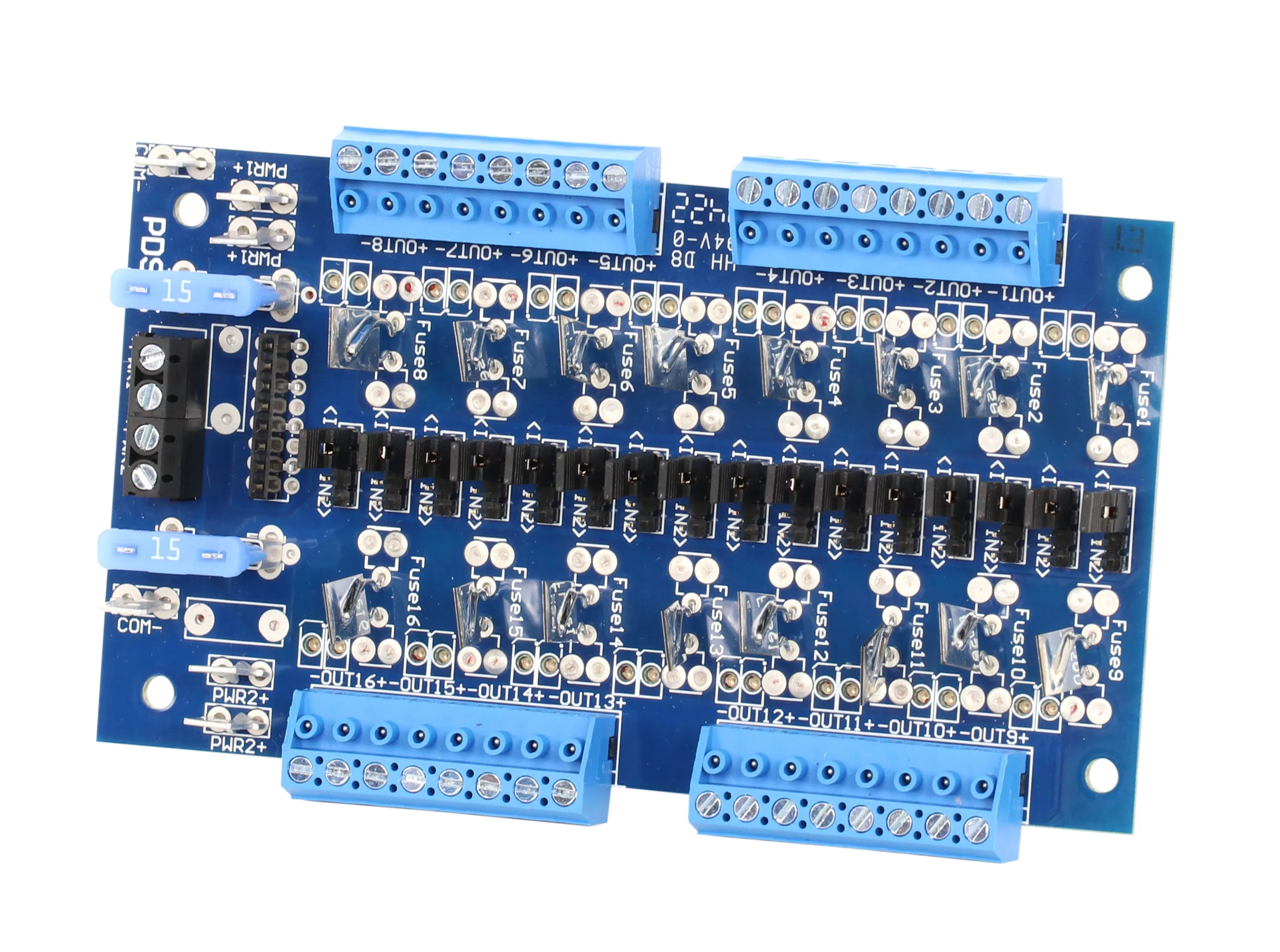

The ACMS12 and ACMS12CB access power controllers and PDS16 and PDS16CB power distribution modules reduce overall equipment and installation costs. The ACMS12 series features dual inputs allowing power to be steered from two independent low-voltage 5 to 24VDC power sources into 12 independently controlled fuse or PTC protected outputs. These access power controllers accommodate devices including mag locks, electric strikes and more. An FACP interface enables emergency egress and alarm monitoring, or may be used to trigger other auxiliary devices with fire alarm disconnect individually selectable for any or all of the twelve outputs. Spade connectors allow installers to daisy chain power to multiple sub-assembly modules to distribute power over more outputs for larger systems. The PDS16 series features dual inputs to steer power from two low voltage AC or DC power sources. Power is distributed over a total of 16 fuse or PTC-protected outputs with spade connectors that allow installers to daisy chain to multiple sub-assembly modules to distribute power over more outputs for larger systems. Altronix products are NDAA and TAA compliant and backed by a lifetime warranty.
