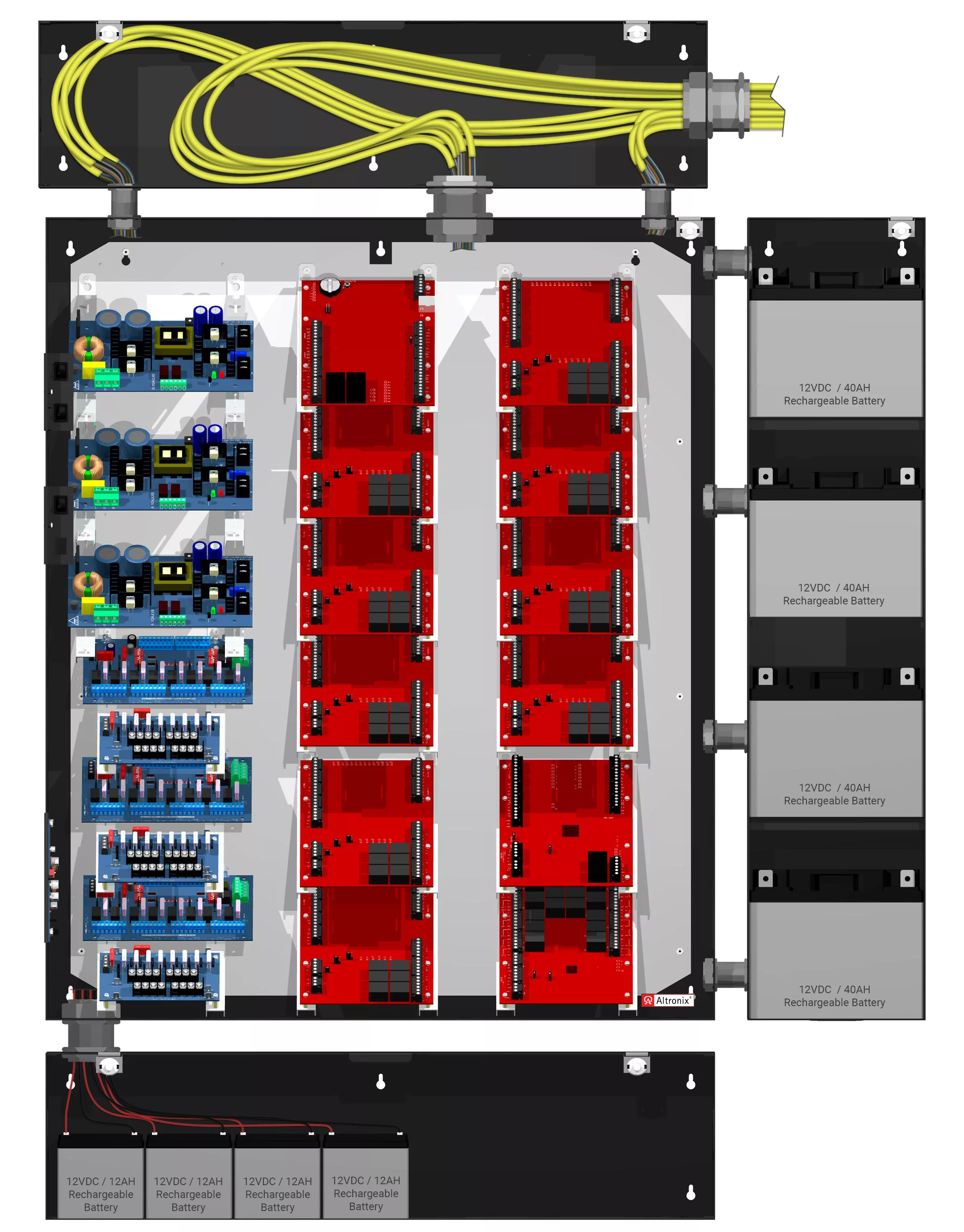

The Altronix Trove maximum density series of access and power integration solutions increases capacity to accommodate more Mercury access hardware, with or without Altronix power from a single enclosure. Optional battery and wiring enclosures are available to further streamline deployment, providing a cleaner installation. Trove3MBK3 features a unique angled bracket system that supports up to 36 doors without power, or 24 doors with Altronix power and sub-assemblies from a single enclosure for the largest access control installations. Trove3BWC mounts above or below Trove3 enclosures and accommodates up to four 12VDC/18AH batteries. Trove3SWC mounts on the side of Trove3 enclosures and can accommodate up to four 12VDC/40AH batteries. Both are dual purpose to hold batteries and conceal external wiring.
