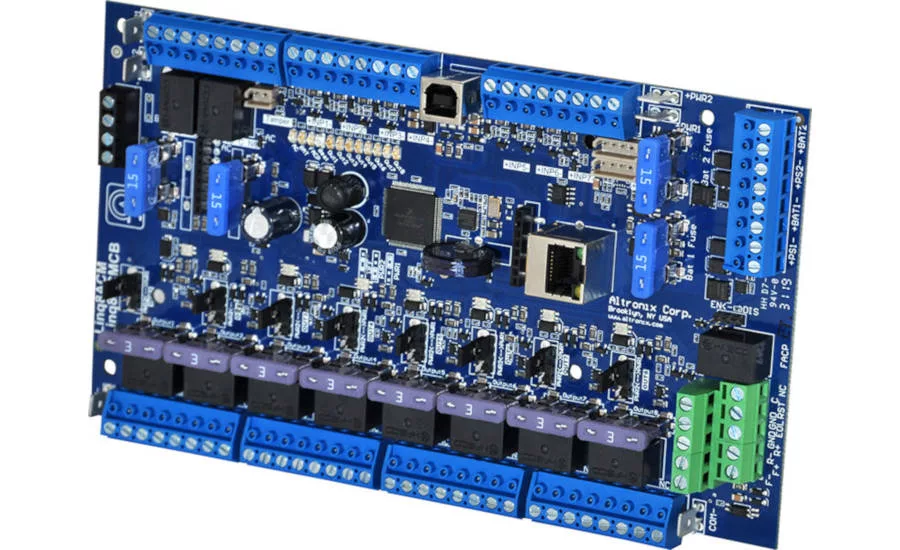

Altronix access power controllers feature embedded LINQ network power management. The LINQ8ACM distributes and controls the amount of power for lock hardware, while providing critical diagnostics and management capabilities from anywhere with real time alerts. It can be installed in Altronix wall- and rack-mount enclosures. Its design allows power to be steered from one or two independent low voltage 12 or 24 VDC Altronix power supplies to eight independently controlled fused protected outputs. Outputs are activated by an open collector sink, normally open, normally closed dry trigger input, or wet output from an access control system, card reader, keypad, push button, PIR, etc. LINQ8ACM will route power to a variety of access control hardware devices. Outputs will operate in both fail-safe and/or fail-secure modes. The FACP interface enables emergency egress, alarm monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight outputs. The spade connectors allow users to daisy chain power to multiple LINQ8ACM modules, allowing users to distribute the power over more outputs for larger systems. Built-in LINQ Network power management facilitates monitoring, reporting and control of power/diagnostics.
