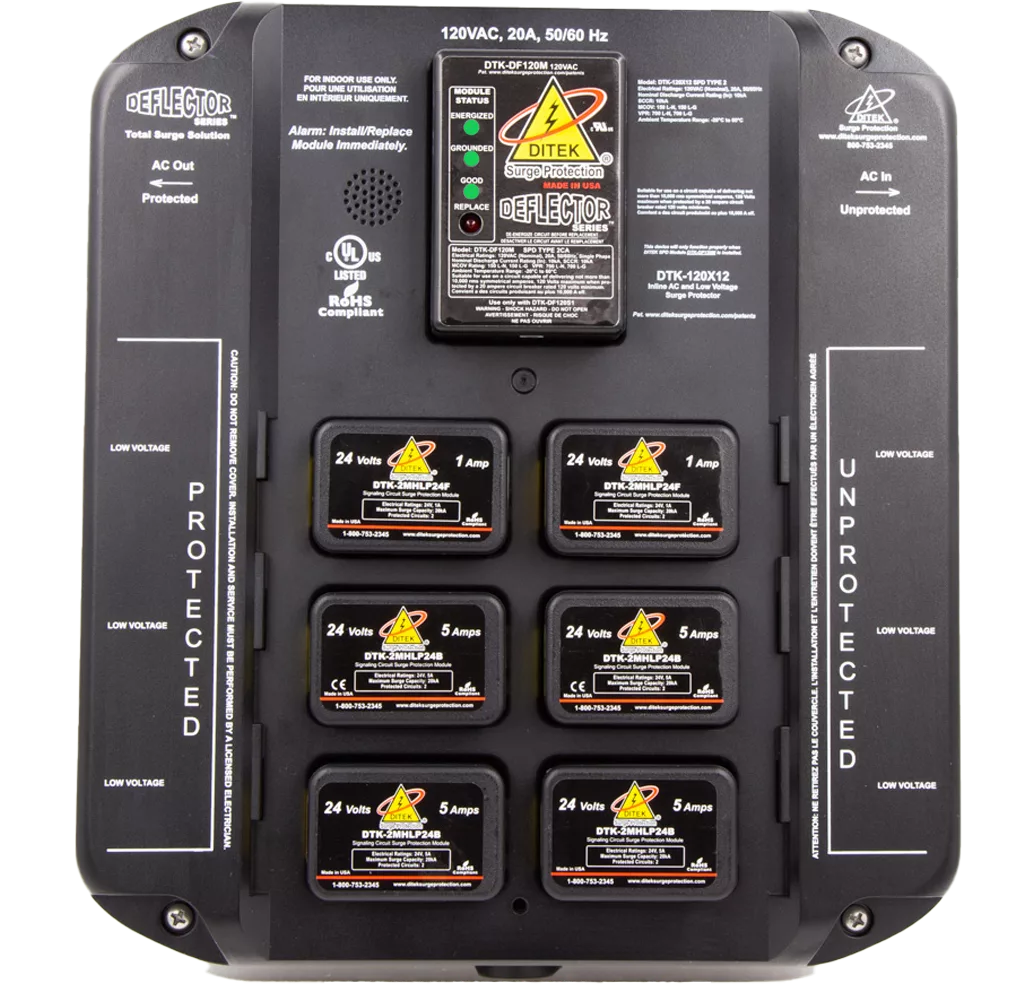

The DTK-120X12 combines protection for 120V system power with protection for up to 12 low voltage circuits to eliminate damage caused by electrical surge events. This unique and compact new combination simplifies implementation of comprehensive surge protection for critically important fire alarm systems while providing for remote monitoring of surge protection status using dry contacts. The convenient, modular plug-in design simplifies installation of surge protection modules and allows for easy replacement when needed. The DTK-120X12 base is designed to be wall mounted and hardwired, and includes the 120VAC power surge protection unit with dry contacts for remote monitoring of surge protection status. The 120VAC module also has LEDs for visual confirmation of status, as well as a loud audible alarm that sounds if protection has been compromised. This three-way notification is designed to ensure that the system will not remain unprotected. The base also has space for mounting up to six compatible low voltage protection modules (DTK-2MHLP and/or DTK-2MHTP) that can be used to protect up to 12 SLC, NAC, IDC, PIV, and dialer circuit pairs. All the protection modules are field-replaceable.
