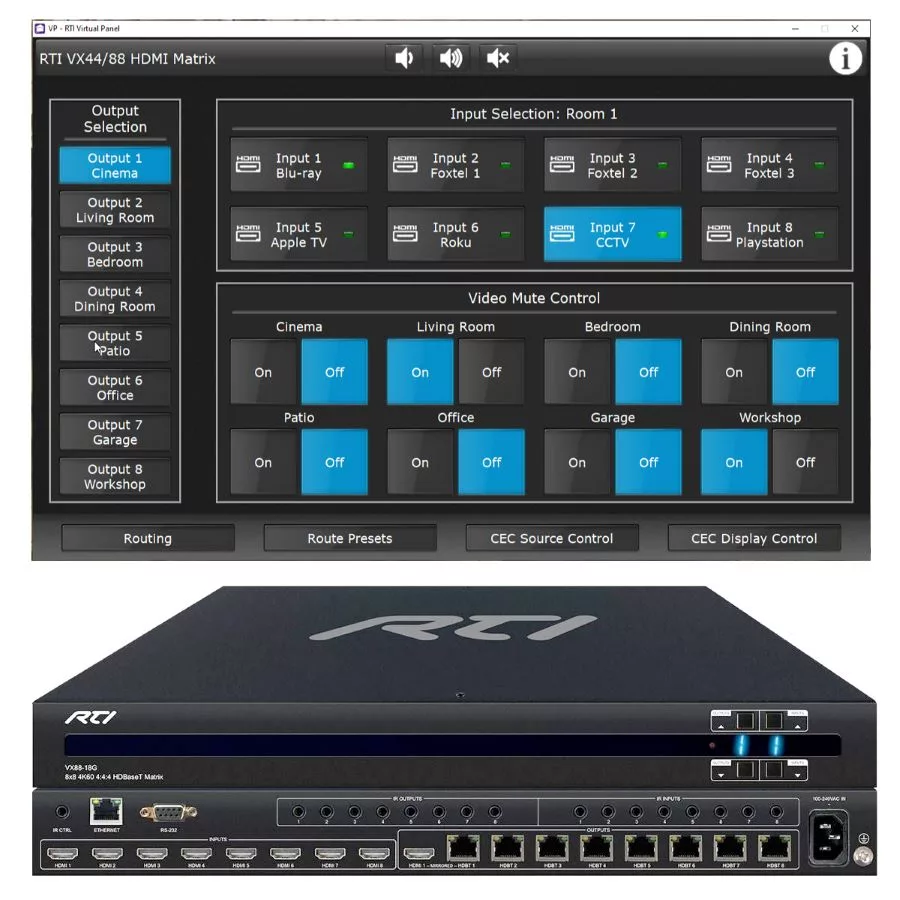

Built on the latest HDBaseT 18Gbps standard — and featuring advanced color space conversion (CSC) technology — the 4x4 VX44-18G-Kit, 8x8 VX88-18G, and matching VRX70-18G receiver integrate seamlessly with the RTI control system for faster installations and enhanced user management. The solutions support 4K UHD resolutions at a 60Hz refresh rate and 4:4:4 chroma sampling to provide crisp, crystal-clear picture quality and eliminate blurring in action movies. The units are HDCP 2.2-compliant and support all known HDMI audio formats, including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio. The VX44-18G-Kit and VX88-18G matrices feature four and eight HDMI inputs respectively that can be independently routed to four and eight HDBaseT outputs. In addition, each unit offers a simultaneous HDBaseT/HDMI output. The devices provide video down-conversion for lower-resolution displays, while a Web browser interface module offers simple configuration. The matrices can be paired with the VXR70-18G receiver — the VX44-18G-kit comes bundled with four — which features HDMI reclocking to resolve HDMI HDCP, compatibility and handshaking issues, and supports IR pass-through to compatible HDBaseT devices. It is powered by the matrices via power over cable.

RTI | www.rticorp.com
