Altronix Extender Increases Signaling

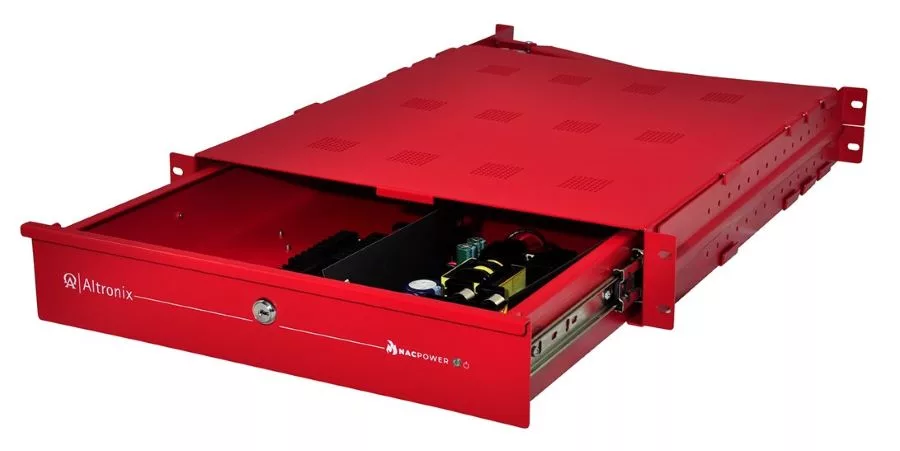

Altronix made additions to its line of NAC power extenders with a unique rack solution. These new units are ideal for installations where wall space is limited or not an option. R1002ULADA offers two Class A or four Class B outputs and model R1042ULADA offers four Class A or four Class B outputs. Both provide 24VDC at 10A and interface with virtually any Fire Alarm Control Panel (FACP). Outputs can be independently programmed for steady, temporal code 3 or strobe synchronization, as well as repeating a specific signal utilizing Input to Output Follower Mode. These units synchronize with Potter/Amseco, Gentex, System Sensor and CooperWheelock notification appliances. Built-in battery charging provides system backup when coupled with RE2R, rack mount battery (red) enclosure, which accommodates four 12VDC/7AH batteries. Special features include a horn/strobe sync mode that allows audible notification appliances and visual notification appliances to be silenced at the same time, signal circuit trouble memory to help identify intermittent loop problems, and common trouble input and output for external trouble signals. The NAC power extenders are NDAA and TAA compliant and carry a lifetime warranty.

Altronix | www.altronix.com
